The DL submersible pump is a versatile dewatering pump capable of transporting up to 20% solids.
High chrome wear components and run dry capability has made this pump a favorite in industrial settings throughout the world.

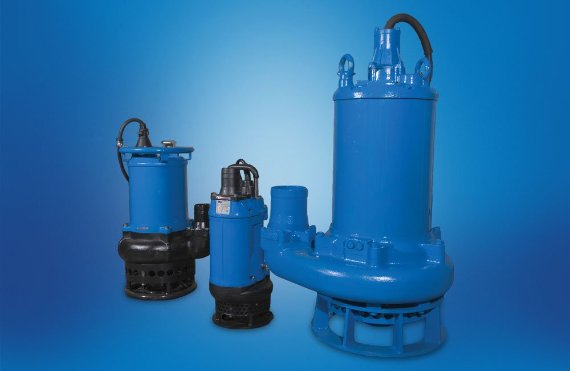

DL Series - Dewatering Pumps

Specs

Capacities
Up to 2100 Usgpm @ BEP
Heads
Up to 112 ft @ Usgpm BEP
Solids
Up to 20% by weight
Sizes
Up to 10” discharge
Agitators as standard
Up to DL 30
Component
High chrome wear components
Chopper package
DL 4 and DL 7.5 available with chopper packages
Capability
Run dry capability
Protection
Built in thermal protection

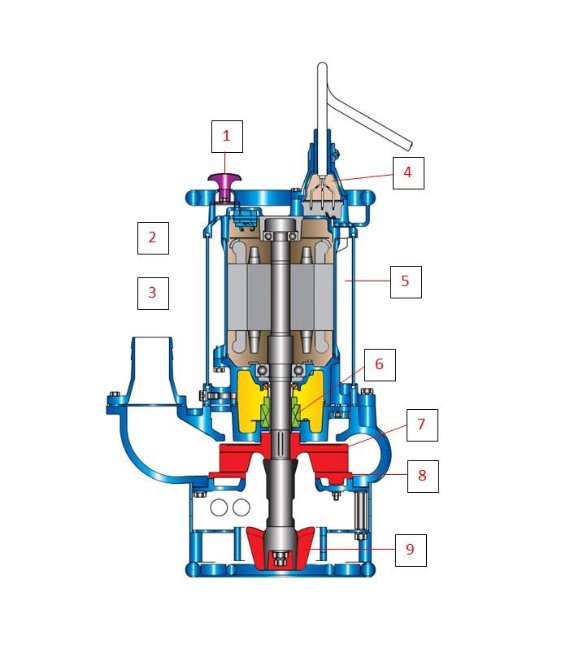

Features

  • Air release valve
  • Run-dry capable
  • Built-in thermal protection
  • Protection from water ingress
  • Built-in cooling jacket
  • Double mechanical slurry seal (single mechanical slurry seal on DL 20 only)
  • Important note: The Toyo DL mechanical seal does not run in the pumped liquid.
  • Hard iron (keyed & locked) impeller
  • Hard iron front adjustable wear plate
  • Hard iron Toyo patented agitator standard up to DL30
  • DL 4 and DL 7.5 available with chopper packages
  • High chrome wear components
  • Built in thermal protection
  • Built in cooling jacket
  • Large internal clearances
